Breakdown assignation tool

Tool that allows assigning leaks over the network.

../../../../_images/breakdown-assignation.png

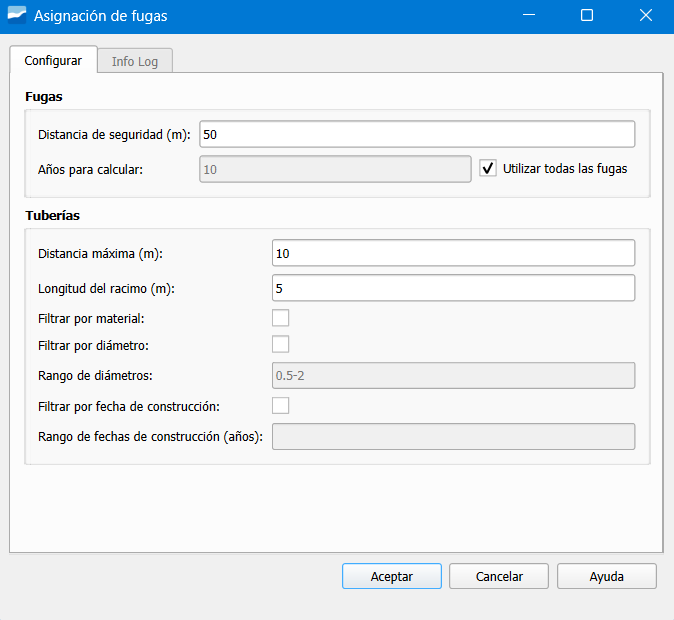

Window of the breakdown assignation tool.

The window contains the following buttons:

Leaks

  • Safety distance (m): search radius around each leak.

  • Years to calculate: temporal limit for the analysis.

  • Use all leaks: ignores the year filter and uses all registered leaks.

Pipes

  • Maximum distance (m): maximum distance between leak and pipe.

  • Cluster length (m): minimum length of the grouped section.

  • Filter by material: activates the filter by material of the pipe.

  • Filter by diameter: activates the filter by diameter.

  • Diameter range: allowed diameter range.

  • Filter by construction date: activates the filter by construction year.

  • Construction date range (years): defines the temporal range for the pipes.
