17. Dimensioning

Advertencia

Before creating a dimensioning we will have to configure obligatorily the autoassembly options.

Tool that allows creating dimensionings that are used as support on the map.

../../../../_images/dimensioning.png

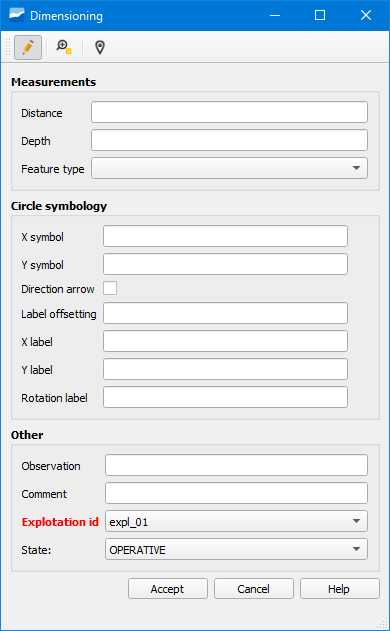

Figura 17.1 Window of the Dimensioning tool.

After having drawn the dimensioning line, we will fill in the pop-up window with the necessary data.
